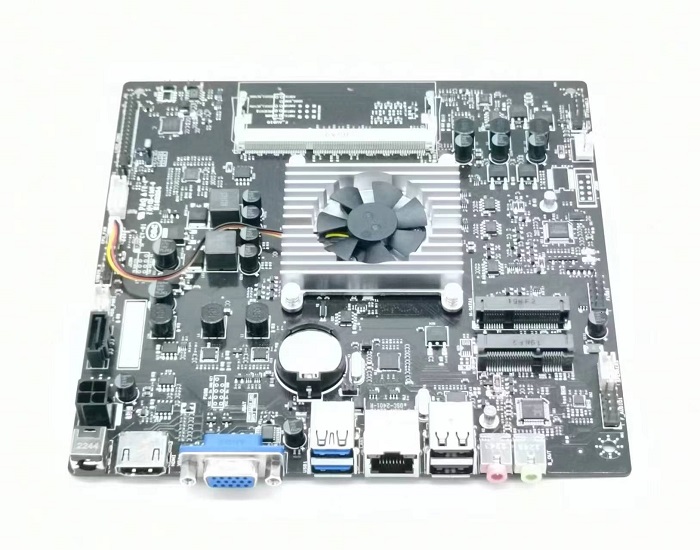

Processor | Intel? BayTrail-D/M N2840 / J1900 / A1020 SOC Processor TDP:12W |
Memory | 1 * DDR3 SO-DIMM 1333MHz / Max：8G |
Storage | 1 * M-SATA / 1 * SATA 3.0 Port |
Graphics | Intel? HD Graphics |
Wireless | 1 * Mini PCI-e/WIFI Module |
Network | Realtek Gigabit Ethernet |
Audio | Realtek ALC662 HD Audio IC |
I/O Interfaces | 2 * USB3.0 Type-A 2 * USB2.0 Type-A 1 * Line out 1 * Mic in 1 * VGA @ 1920*1080 1 * HDMI @ 4096*2160 1 * DC Jack |
Internal Interfaces | 2 * F-USB 2.0 pin 1 * F-USB 2.0 pin 1 * 30 PIN LVDS PIN 1 * SATA + 4PIN HDD Power 1 * F-Audio PIN 1 * SPEAK 1 * 3 PIN FAN |
Power input | 12V DC in |
Dimension | 170 * 170 mm |
Working enviroment | Operating -10℃~60℃ Storage -20℃~70℃ |
Relative humidity | 10%~90% （non-condensing） |
