Processor | Intel? 11th Tiger Lake U Core? i3 / i5 / i7 Processor TDP 28W |
model | OPS-TC-OP11U |
Graphics | Intel? Iris? Xe Graphics |
Memory | 2 * SO-DIMM * 3200 DDR4 |
Storage | 1*M.2 SATA SSD / 1*M.2 NVME SSD |
Display interface | HDMI 2.0 * 1 |
Network | 1000M LAN * 1 |
USB | USB3.1 * 2 / USB2.0 * 2 / 1*Type-C |
Audio | Mic in*1 / 3.5mm Line out*1 |
Machine key | Power button*1 / Power LED*1 / reset *1 |
Wireless | 1* M.2 2230 WIFI+BT |
Expansion interface | Mini PCI-E/mSata （Default without SSD）COM*1 RS232 |
OPS interface | 1*JAE 80PIN |
fan | Intelligent speed regulation |
operating system | Windows 10 、11 / Linux |
Working enviroment | -5°C ~45°C / 30% ~ 98% RH |
Power input | DC 19 V |

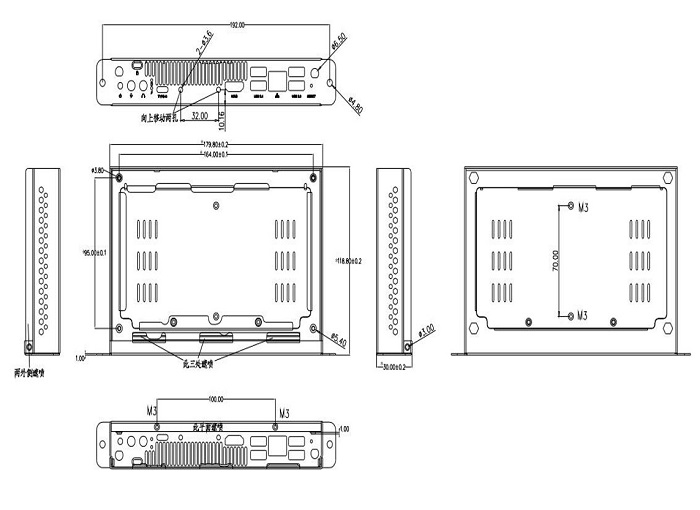

Dimension | 195mm * 180mm *30mm |
