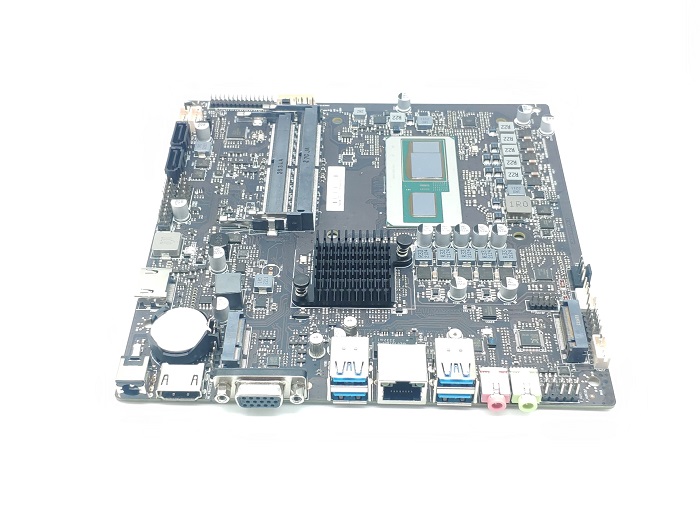

處理器 | Intel? 8th KabyLake-G ? i5-8305G / i7-8809G SOC Processor TDP:120W |
內存接口 | 2 * DDR4 2400 MHz SO-DIMM / Max:64G |
硬盤接口 | 1 * M.2 2280 SSD NVME or SATA / 1 * SATA 3.0 Port |
顯卡參數 | 1 * Radeon? RX Vega M GL graphics 4G 獨立顯卡 |
無線選項 | 1 * M.2 2230 WIFI/BT Module |
網卡芯片 | Realtek Gigabit Ethernet |
聲卡芯片 | Realtek ALC897 Audio |
I/O接口 | 4 * USB3.0 Type-A 1 * Line out 1 * Mic in 1 * VGA @ 1920*1080 1 * HDMI @ 4096*2160 1 * DC Jack |
插針接口 | 2 * F-USB 2.0 pin * 30 Pin LVDS pin 1 * HDMI @ 4096*2160 1 * SATA 3.0 Port 1 * F-Audio pin 1 * SPEAK 1 * 4Pin 風扇 1 * 4 PIN 供電座 1 * RS232 COM插針(可選) |
電源參數 | 19V DC in |
產品尺寸 | 170 * 170 mm |
工作環境 | Operating 0℃~45℃ Storage -20℃~70℃ |
工作環境 | 10%~95% (non-condensing) |
