處理器 | Intel? 11th TigerLakeCore? i3 / i5 / i7 – U / H SOC Processor TDP 35W |
內存規格 | 2*SODIMM DDR4 3200 Mhz |
硬盤規格 | 1 * M.2 2280 SSD / 1 * SATA 3.0 Port |
顯卡參數 | Intel? Iris? Xe Graphics |
無線選項 | 1 * M.2 2230 WIFI Module |
網卡芯片 | Realtek Gigabit Ethernet |
聲卡芯片 | Realtek HD Audio IC |

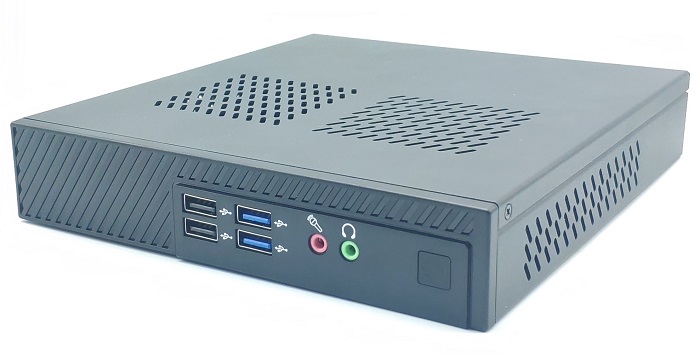

前置接口 | 4 * USB2.0 Type-A 1 * Line out 1 * Mic in 1 * Power button 1 * Power LED |

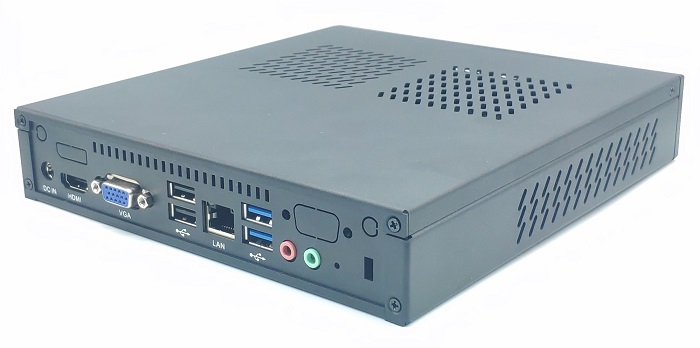

后置接口 | 4 * USB3.0 Type-A 1 * RJ45 Gigabit LAN 1 * VGA 1920*1080 1 * HDMI 1.4 out, @ 4K / 30Hz 1 * 3.5mm Line out 1 * 3.5mm Mic in 1 * DC Jack |
電源參數 | 12V / 19V DC in |
機殼材質 | 前面板: 塑膠 機身外殼: 金屬 |
產品尺寸 | 199(L) * 185(W) * 37(H) mm |
工作環境 | Operating 0℃~45℃ Storage -20℃~70℃ |
工作環境 | 10%~95% (non-condensing) |
產品重量 | 0.65 kg |
